TOPPAN's temperature logger label: Visualize temperatures during storage and transportation
Digitization of temperature information during storage and transportation and product traceability at a low price

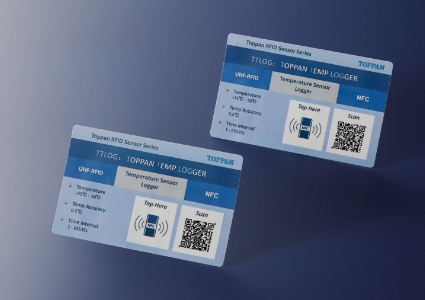

This thin, card-sized IC tag enables simple temperature management by recording the temperature at regular intervals and transmitting log data via wireless networks.
To all those in logistics, food manufacturing, chemical manufacturing, and the distribution industry facing challenges with long-distance, temperature-controlled transportation, do any of these issues resonate with you?
Wanting to visualize temperatures during transportation.
Existing temperature logger equipment is too expensive, which makes their introduction difficult.
Gathering temperature management data is difficult and involves a heavy workload.
Visualization of temperature management at a low cost
Compatible with the NFC frequency band, our temperature logger label is a wireless communication label that makes temperature management for long-distance transportation a reality. This product automatically records the temperature at regular intervals and stores the information on an IC chip. The stored information can then be read using a dedicated smartphone application. Through the use of a single-use battery and adoption of a simple structure without a terminal for data downloading or a display, the label offers a low-cost solution for temperature management.
Simple to use thanks to a dedicated smartphone app
Temperature measurement intervals between 10 seconds and 60 minutes (11 possible options)
Timer for start of measurement included
Easy-to-use IC card size
Can be attached and used just like normal stickers
Measurement data can be confirmed on the spot or emailed
Manganese-based primary printed battery included
Compliant with air freight standards (RTCA/DO160G)
TOPPAN's temperature logger label product overview
Specifications of TOPPAN's temperature logger label (TP-3L489-2)
Temperature measurement range
-30°C〜+50°C
Internal IC temperature sensor measurement accuracy
+35°C to +50°C: margin of error of ±0.5°C
0°C to less than +35°C: margin of error of ±1.0°C
-20°C to less than 0°C: margin of error of ±1.5°C
-30°C to less than -20°C: margin of error of ±2.0°C
Internal IC clock accuracy
Margin of error of ±2%
Number of times temperature can be recorded
Regular mode: 4,864 times
Period over which measurements can be taken (examples)
10-minute interval: 33 days
30-minute interval: 101 days
60-minute interval: 202 days
RFID communication protocols
13.56 MHz ISO/IEC 14443 Type A NFC Type-2 protocol
External dimensions (width × height × thickness)
88mm × 54mm × approximately 1mm
Approximate battery life
Half a year after the product is delivered
(depending on the usage and storage conditions)
*Product specifications are subject to change without notice for improvement.
TOPPAN can offer comprehensive solutions for temperature management
TOPPAN can offer comprehensive services that cover not only temperature management during storage and transportation but also the optimization of the entire supply chain, including product authenticity verification, traceability, and the enhancement of points of contact with customers.
Price
We will interview you regarding the challenges you face and then present an estimate.
*Minimum order quantity (packaging units): 1,000 logger labels (200 labels per box)
*For quantities of fewer than 1,000 labels, please consult with us separately.
Procedure up until the start of operations
We provide one-stop support for the introduction, including temperature logger labels, equipment arrangement, and the system.
STEP 1:Interview
We start by confirming the challenges you face and your objectives.
STEP 2:Trial
You confirm the operational and functional characteristics of our temperature logger labels.
STEP 3:Operational proposal
We propose the optimal solution for you.
STEP 4:Estimate and order
Based on the finalized requirements, we submit an estimate and then receive an official order from you.
STEP 5:Introduction and start of operations
We deliver the temperature logger labels and you start operations.
ANo, it is a built-in primary battery, so it cannot be charged or replaced. If the voltage of a temperature logger label decreases, please replace it with a new one.
